Features
Pressurizing unit
Features

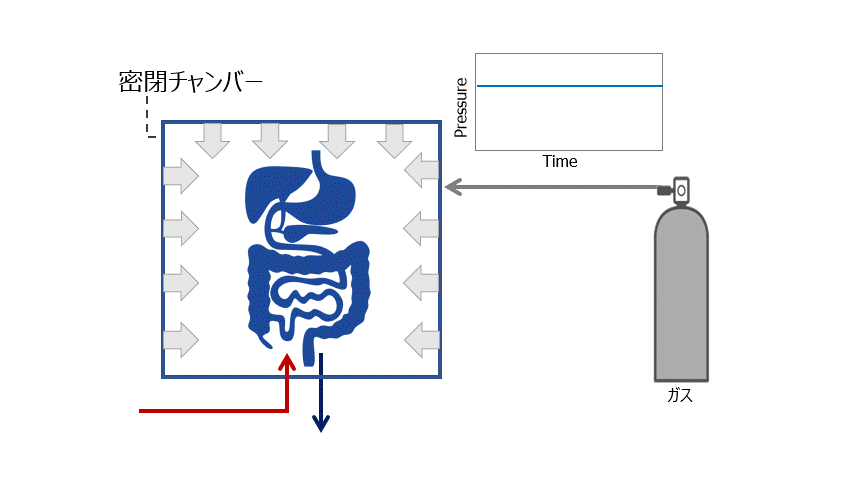

Pressurizing an organ or tissue gas irrigation stream
With a well design sealed chamber, it can pressurize the whole organ/tissue uniformly. The improvement of the perfusion can be expected.*
Supports two patterns of intermittent pressure and steady pressure
You can switch between intermittent pressurization mode and steady pressurization mode with a single switch. The time for pressurization and the time for opening to the atmosphere can be set arbitrarily between 1s and 99m99s.
Accurate pressurization is possible with the real time pressure feedback regulation
Real-time accurate pressurization is possible with close-loop regulation of present pressure value.
製品情報
Use case
Use case
Spec
Closed chamber
Intermittent pressurization
Pressurize ⇔ non-pressurize (open to the atmosphere) is repeated.
Each time can be set arbitrarily between 1 s and 99 m 99 s.
Continue to pressurize at a constant pressure.
Steady pressurization
Sealed chamber
Highly sealed design is required for pressurized containers. The chamber has a sealed structure in addition to the standard organ chamber structure.
* Sold separately
basic specifications
Configurable pressure
0 ~ 50 mmHg
Corresponding pressurizing gas
Room air (built into the controller)
CO 2 O 2 (combined with our gas mixer GM series)
Configurable interval
1 s ~ 99 m 99 s
W 120 x D 250 x H 156 mm
size
Component
controller
Pressurizing mode
